Vector Graphics Conversion

Cenon can be used to convert quite a number of vector graphic formats in any desired direction. Cenon also allows editing of the data.

The import of Cenon is used to read the graphics file. The format is automatically recognized by the file extension. After the file is imported, it is fully editable like any other Cenon document. The export allows writing to any of the supported file formats.

Cenon brings worlds together

DXF
PostScript
Adobe Illustrator
DIN-Formate
HPGL
Gerber
PDF

PostScript, PDF

PostScript Import

Cenon works hand in hand with the well known GhostScript interpreter or the Display PostScript of your system. Also PDF is read using the GhostScript interpreter.

PostScript Export

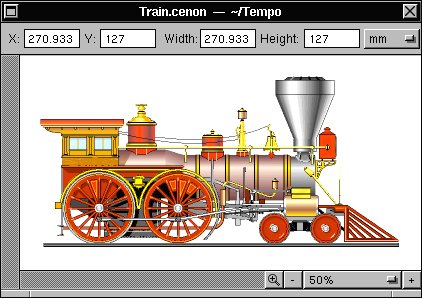

Cenon exports EPS or PS data. The generated EPS data of Cenon is a straight and simple PostScript without tricks, and should be readable by any other program.

Adobe Illustrator (AI)

The Adobe Illustrator format can be imported using the PostScript prologues from Adobe. This procedure could be extended to other formats, which are similar to the PostScript format.

DXF - Data Exchange Format

DXF-Import

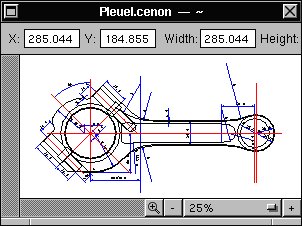

The DXF import allows import of two dimensional data. The extention towards 3-D is planned.

DXF-Export

On export of DXF, simple and straight forward data is written, which should be readable anywhere.

Gerber

Gerber Import

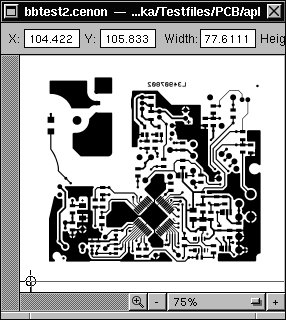

The Gerber format is widely used in the area of electronics in the production of printed circuit boards (PCB). Cenon imports the older Gerber format as well as the newer Extended Gerber (RS274X), which supports complex polygons.

Gerber Export

Cenon always writes Extended Gerber files.

Other Data Formats

SVG - Scalable Vector Graphics

With Cenon, you can import SVG graphics.

HPGL

Cenon allows the import of HPGL derivates. Configuration files allow the configuration of different file formats for import as well as for export.

DIN formats

Cenon reads and writes derivates of the DIN data format. Examples are Sieb&Meyer, Wessel and Excellon. So far, the import is limited to drill markings.

Type-1 Fonts

Even Type-1 fonts can be imported and exported with Cenon. This function turns Cenon into a font editor. All our CAM Fonts (engraving fonts) were created with Cenon.
